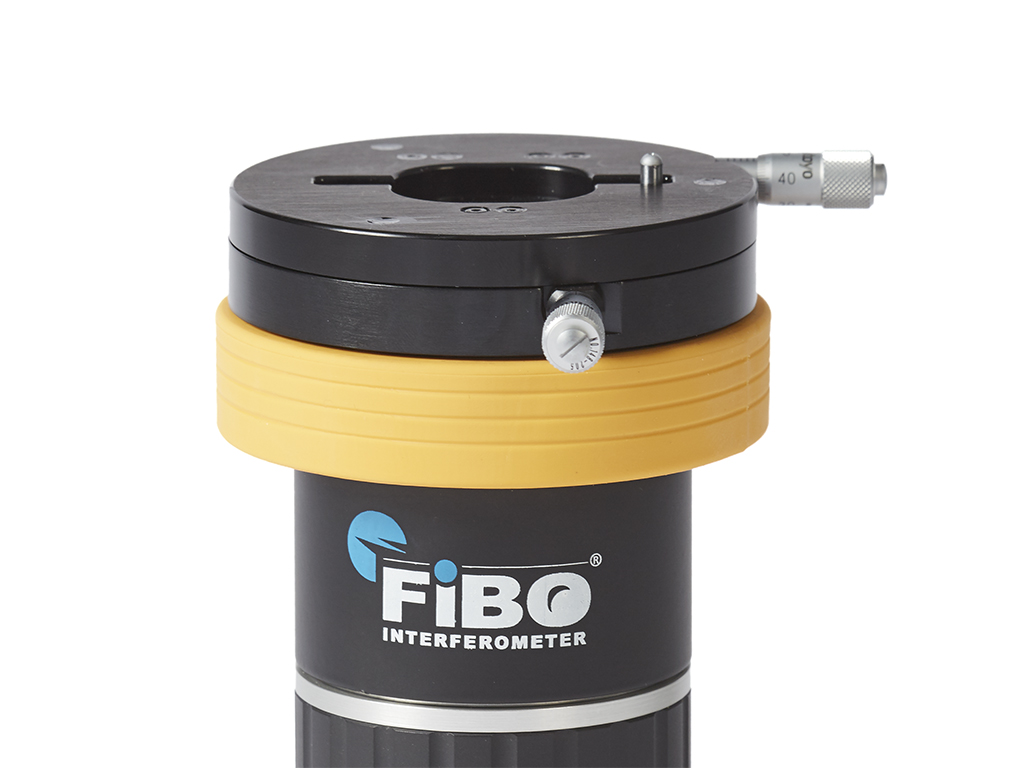

FiBO® 200 Interferometer
FiBO® 200 Interferometer is an economical solution for complete and accurate fiber optic connector endface testing. High resolution 3D surface metrology and automated defect detection are combined in one robust, compact system for quick and easy inspection on the production floor or in the field.
Applications
- Aerospace/Military field service
- Telecom field service
- Duplex SC, LC
- Ribbon fibers
- Specialty optoelectronic interconnects
- Supplier qualification
- QA inspection and documentation
System Features
- Comprehensive testing of PC and APC connectors and ferrules
- Radius of curvature, fiber height and apex offset measurement
- Automatic pass/fail surface defect analysis
- Quick manual focus adjustment
- High resolution imaging optics for accurate results
- Patented kinematic adapters for exact fiber positioning
- FiBO Code™ V3.0 software
- Compliance with IEC/TIA measurement standards
- Quick and easy ISO/NIST traceable calibration
- Accepts Fiber Ribbon Stage for ribbon fiber analysis
Hardware Specifications
| Measurement technique: | Non-contact, phase-shifting Michelson interferometry |
| Configuration: | Portable or bench top |
| Computer Interface: | USB 3.0 |
| LED Wavelength: | 458 nm |
| Optical Magnification: | 10x |
| On Screen Magnification (19" screen): | 480x |
| Lateral Resolution (µm/px): | 0.56 |
| FOV 1/4" diagonal (µm): | 450 |
| Size: | Height 5.1 inches (130mm), Diameter 3.35 inches (85mm) |
| Weight: | 3 lb. (1.4 kg) |
| Power Supply: | 3 lb. (1.4 kg) Power Supply: None (all power delivered over USB 3.0 cable) |
